Cylinder Head

Limit Strain Under 0.10mm
Thickness of gasket Free 1.10 Used 1.05
Allowable difference of each cyl. Bore (inner dia.) An eliptic 0.015 taper within 0.020
Wear limit to inner dia. 0.2mm

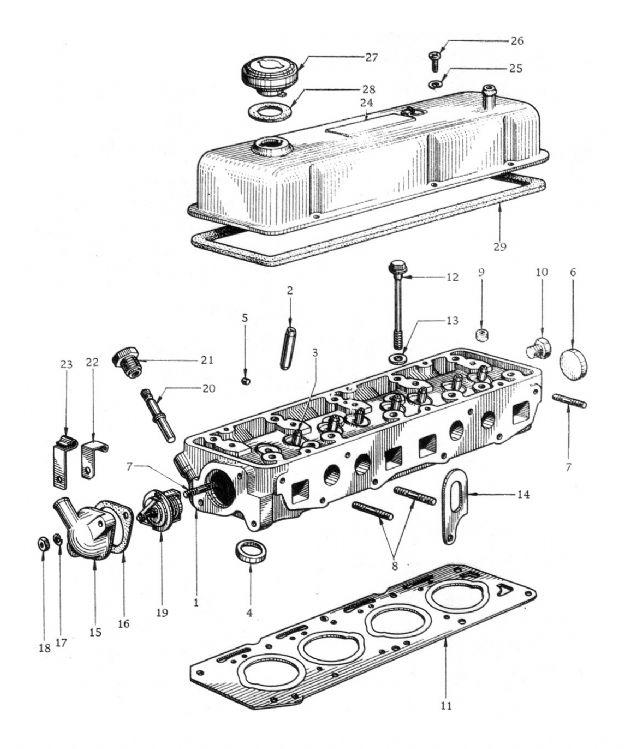

  1. Ass'y-head cylinder
  2. Guide-valve, intake
  3. Guide-valve, exhaust
  4. Insert-valve seat, intake
  5. Plug-taper
  6. Plug-taper
  7. Stud-washer outlet & manifold
  8. Stud-manifold
  9. Plug-blind, cylinder head
  10. Plug-heater, outlet hole
  11. Gasket-cylinder head
  12. Bolt
  13. Washer-lock
  14. Slinger-engine front
  15. Outlet-water
  1. Washer-joint, water outlet
  2. Washer-lock
  3. Nut
  4. Ass'y-thermostat
  5. Gauge unit-water temprature
  6. Nut-ground
  7. Clamp-tube, fuel pump to carburetor
  8. Clamp-vaccum control tube
  9. Ass'y-cover, valve rocker
  10. Washer-lock
  11. Screw
  12. Cap-oil filler
  13. Packing-oil filler cap
  14. Packing-rocker cover
