Reference Material |
|
|
|
|

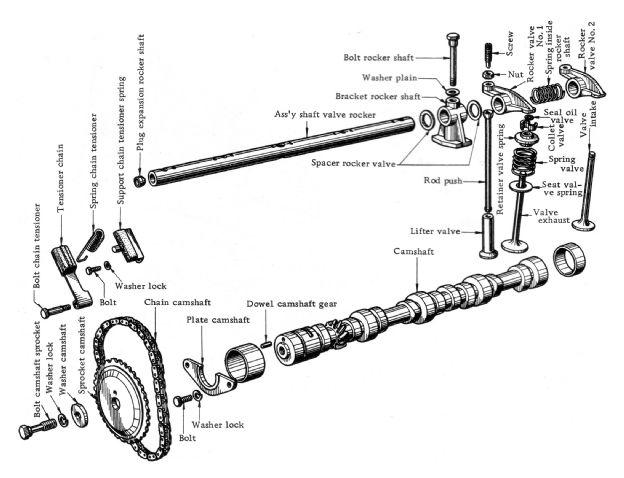

Cam Shaft
| Wear limit of cam shaft journal | 0.03mm (elliptic or taper) |
|---|---|
| Limit of alignment of cam shaft | 0.5mm |
| Height of cam | 36.45 - 36.55 (Inlet & Exhaust) |
| Wear limit of cam | 0.5 (at all height) |
| End play of cam shaft | 0.1 - 0.2mm |
| Clearance bushing & cam shaft | 0.03 - 0.07mm (Same journal for all) |
| Bushing under size | S.T.D. 0.25, 0.50, 0.75 |
Camshaft Lapped Dimension mm (Bushing Part No.)
| No.1 (Front) | No.2 | N0.3 (Center) | N0.4 | No.5 (Rear) | |
|---|---|---|---|---|---|
| Size, S.T.D. |
43.793-43.806 | 43.283-43.296 | 42.783-42.796 | 42.283-42.296 | 41.218-41.231 |
| Part No., S.T.D. |
(13005-18001) | (13006-18001) | (13007-18001) | (13008-18001) | (13009-18001) |
| Size, U.S. 0.25 |
43.543-43.556 | 43.033-43.046 | 42.533-42.546 | 42.033-42.246 | 40.968-40.981 |
| Part No., U.S. 0.25 |
(13005-18002) | (13006-18002) | (13007-18002) | (13008-18002) | (13009-18002) |
| Size, U.S. 0.50 | 43.293-43.306 | 42.783-42.796 | 42.283-42.296 | 41.743-41.796 | 40.718-40.731 |
| Part No., U.S. 0.50 |
(13005-18003) | (13006-18003) | 13007-18003) | (13008-18003) | (13009-18003) |
| Size, U.S. 0.75 | 43.043-43.056 | 42.533-42.546 | 42.033-42.046 | 41.533-41.546 | 40.468-40.481 |
| Part No., U.S. 0.75 |
(13005-18004) | (13006-18004) | (13007-18004) | (13008-18004) | (13009-18004) |
